SMATV & Terrestrial

Accessories at a glance

Advantages, properties and details






Splitters/Taps
  • For signal distribution up to 2.150 MHz
Art. No.Article nameItem descriptionPDF
57000995STA 0124-10F-tap 1-way, 5 - 2.150 MHz
57000996STA 0224-10F-tap 2-way, 5 - 2.150 MHz
57000997STA 0424-10F-tap 4-way, 5 - 2.150 MHz
10161293VT 0224F-splitter 2-way, 5 - 2.150 MHz
10161294VT 0324F-splitter 3-way, 5 - 2.150 MHz
10161295VT 0424F-splitter 4-way, 5 - 2.150 MHz

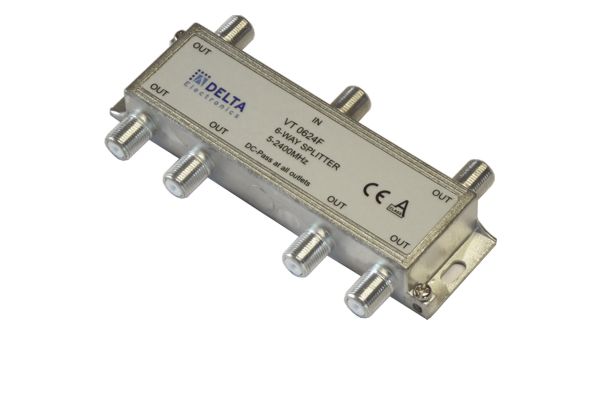

10161296VT 0624F-splitter 6-way, 5 - 2.150 MHz
10161297VT 0824F-splitter 8-way, 5 - 2.150 MHz
Antenna outlets
  • For passive frequency distribution up to 2.4 GHz
Art. No.Article nameItem descriptionPDF
10161441SDD 2410 Q PU: 10Terminal outlet, 3 outputs, 2.200 MHz, 12 dB
57001527SDD 2410 QD PU: 1Loop through outlet, 3 outputs, 5 - 2.400 MHz, 10 dB, DC-pass
57002346SDD 2411 QDLoop through outlet, 3 outputs, 5 - 2.400 MHz, 11 dB, DC-pass
57002345SDD 2414 QDLoop through outlet, 3 outputs, 5 - 2.400 MHz, 14 dB, DC-pass
57001442SDD 2419 QDLoop through outlet, 3 outputs, 5 - 2.400 MHz, 19 dB, DC-pass
57001443SDD 2424Loop through outlet, 3 outputs, 5 - 2.400 MH6, 24 dB, DC-pass

10161147SEA 2400Terminal outlet, 3 outputs, 5 - 2.400 MHz, 2,5 dB (950 - 2.400 MHz), DC-pass
57001528SEA 2400 Q PU: 1Terminal outlet, 3 outputs, 5 - 2.200 MHz, 1,5 dB (950 - 2.400 MHz), DC pass, with cover plate and frame
57001598SEA 2400 Q PU: 10Terminal outlet, 3 outputs, 5 - 2.200 MHz, 1,5 dB (950 - 2.400 MHz), DC-pass
57002344SEA 2400 QRTerminal outlet with resistor, 3 outputs, 950 - 2.400 MHz, 8 dB, DC-pass
10161174STD 2400Twin Terminal outlet, 4 outputs, 85 - 2.200 MHz, 4,0 - 6,5 dB (950 - 2.200 MHz), DC-pass

57000947BDM 2410-85 PU: 1SAT-DATA multimedia outlet loop through, 2.400 MHz, 10 dB, with cover plate and frame

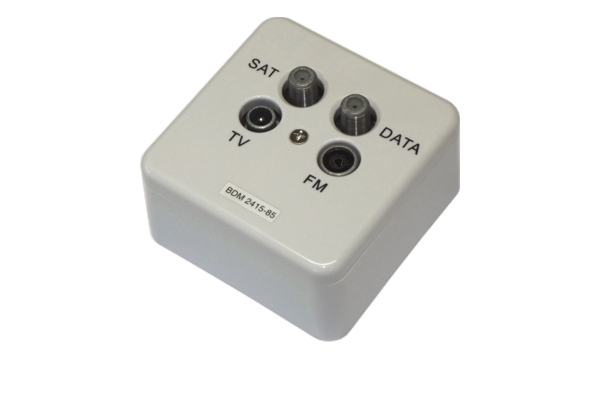

57000948BDM 2415-85 PU: 1SAT-DATA multimedia outlet loop through, 2.400 MHz, 15 dB, with cover plate and frame
57000949BDM 2419-85 PU: 1SAT-DATA multimedia outlet loop through, 2.400 MHz, 19 dB, with cover plate and frame
57000951BEM 2404-85SAT-DATA multimedia outlet, terminal, 2.400 MHz, 4 dB, with cover plate and frame

57001452AD 3 SETSet with cover plate (two parts) and frame for 3-hole outlets, pure white
10161347AD 3Cover plate (one part) for 3-hole-outlets, pure white
10161348AP 1Frame, pure white

57000813R 75Terminal resistor, 0 - 2.200 MHz, 75 Ohm, for DC isolated wall outlets
57000990R 75 DCTerminal resistor DC isolated, 10 - 2.2200 MHz, 75 Ohm, for SAT wall outlets with DC pass
